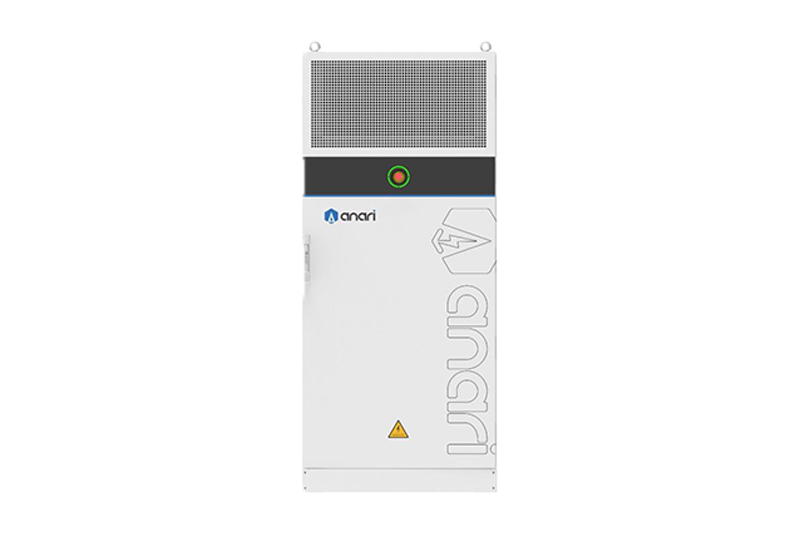

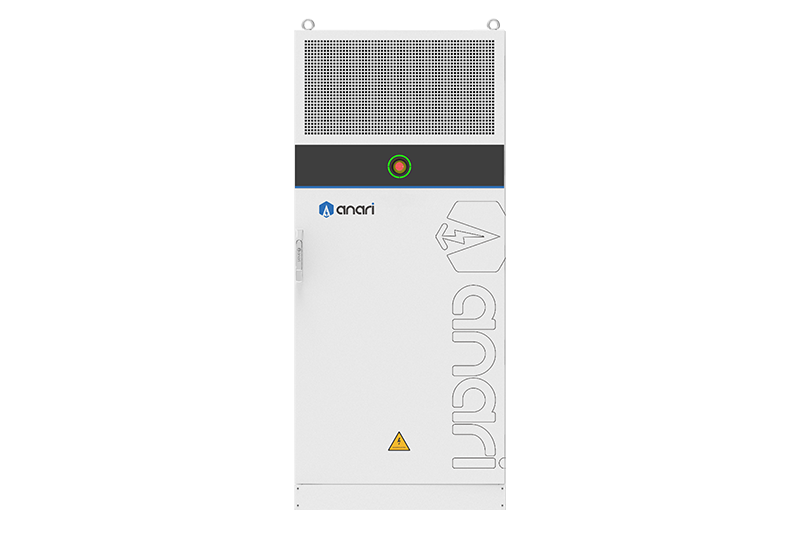

ARK-E 100C is PV+ESS all in one energy block integrated by hybrid converter and battery Pack, cabinet, etc. The design follows IEC standards, mainly used in the new industrial and commercial PV storage power station needs, the energy cabinet integrates photovoltaic MPPT, battery DCDC, DC/AC bidirectional converter. On-grid, off-grid, it can meet the different application scenarios of the customer site, and provide different EMS modes such as self-use, economic mode, backup mode, etc. The main application scenarios include shopping malls, office buildings, hotels, commercial complexes, factories, distributed photovoltaic plant, distributed power station, zero-carbon park, micro-grid, heat pump, diesel generator.
This 100kWp PV system features DC-coupled charging, grid-compliant AC output, and scalable modular blocks for simplified maintenance. It enables real-time remote monitoring, proactive safety, and unmanned operation with transparent data and reduced OPEX.
This advanced battery system ensures superior safety with multi-layer firewalls, bottom venting to prevent explosion, and AI-powered failure prediction. Its 50% noise reduction and IP55/C5 rating enable versatile deployment in commercial and demanding environments.
This fully liquid-cooled system achieves high energy density and lower auxiliary consumption. Its modular Pack/PCS design, single-rack management eliminating inter-rack circulation, and integrated layout ensure high availability, flexible deployment, and reduced TCO
This plug-and-play modular system features automatic Pack SOC balancing and requires no excavation, minimizing civil works. It supports parallel off-grid operation, backup power, and three-phase imbalance management for versatile grid support applications.
|
SYSTEM DATA |
Cell Type |
LFP 3.2V/314AH |
|
Configuration |
128S1P |
|
|
Nameplate Capacity |
120kWh |
|
|
Maximum System Efficiency |
≥88% |
|
|
Depth of Discharge |
100% DOD |
|
|
Voltage Frequency |
50Hz |
|
|
Communication Interface |
LAN |
|
|
Number of Cycles |
≥10000 Cycles |
|
|
System Protection Level |
IP55（battery cabinet） |
|
|
Operating Temperature |
-35℃~55℃（45℃-55℃ derating） |
|
|
Operating Humidity |
0%RH ～ 95%RH （No condensation） |
|
|
Noise |
< 70db |
|
|
Altitude |
≤2000m |
|
|
Thermal Management Methods |
Liquid cooling (battery+PCS) |
|
|
Certification |
IEC 62619, IEC 62477, IEC 61000 IEC 60730, VDE 4105, CEI 0-21 EN 50549-1, UN38.3 |
|
|
PV DATA |
Maximum Photovoltaic Input Power |
100kWp |
|
Rated DC Input Voltage |
720V |
|
|
MPPT Voltage Range |
150-850V |
|
|
DC TERMINAL DATA
|
Rate Voltage |
720V |
|
Maximum Power |
110kWp |
|
|
Maximum Input/Output Power |
152A |
|
|
GENERATOR INPUT DATA |
Rated Voltage |
400V（-15%~10%）3L/N/PE |
|
Maximum Input Power |
100kVA |
|
|
Rated Frequency |
50Hz |
|
|
Maximum Input Current |
145A |
|
|
OUTPUT DATA |
Rate Output Power |
50kVA |
|
Maximum Output Power |
55kVA/long-term；60kVA/2min |
|
|
Rated Output Voltage |
400V（-15%~10%）3L/N/PE |
|
|
Rated Frequency |
50Hz |
|
|
MECHANICAL PARAMETER |
Dimensions (W*H*D) |
1000mm*2270mm*1000mm |
|
Total Weight |
1600Kg |
