Plug and charge, App, RFID Card, equipped with a 5" LCD touch screen and multilanguage(English, Turkish, French, Spanish, Russian).
These chargers support international standards such as CCS 1 (North America), CCS 2 (Europe), and CHAdeMO (Japan), ensuring compatibility with 99% of EVs.

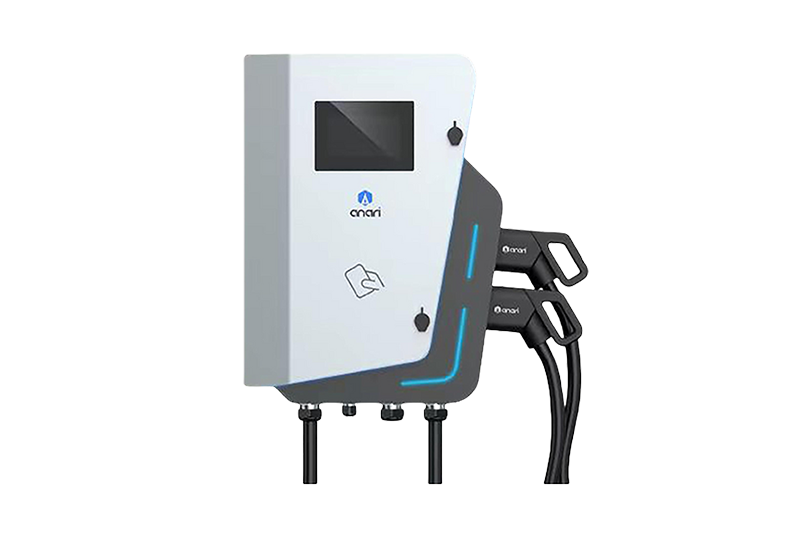

The DC Wallbox Chargers are compact, powerful, and wall-mounted, designed to deliver fast charging, making them ideal for home and business.
Weatherproof enclosure rated for indoor or outdoor installation, includes a 5M charging cable to easily reach your EV.
|
Power Specification |
Model Number |
ANZ-D180F1DC-H |
ANZ-D240F1DC-H |
ANZ-D300F1DC-H |
ANZ-D360F1DC-H |
|
AC Power Input Rating |
400 VAC +/- 15% (50 Hz or 60 Hz) |
||||
|
Connector Types |
3P + N + PE |
||||
|
Input Current |
254A |
338A |
423A |
508A |
|
|
DC Output Voltage |
200~1000 Vdc |
||||
|
Output Power |
180kW |
240kW |
300kW |
360kW |
|
|
Outlet current |
CCS 125A, 200A; GB/T 125A, 200A, 250A; ChadeMO 125A |
||||
|
Cable Length |
2 * CCS2 5m/8m/10m |
||||
|
User Interface & Control |
Charging Control |
Plug and Charge, App, RFID(ISO14443) |
|||
|
LCD Display |
7" LCD touch screen |
||||
|
Connectivity |
4G, Ethernet |
||||
|
OCPP Protocol |
OCPP1.6J |
||||
|
Multilanguage |
English, Turkish, French, Spanish, Russian and Chinese |
||||
|
Environmental |
Storage Temperature |
-40°C to + 60°C |
|||
|
Operating Temperature |
-30°C to + 55°C (power de - rating applies) |
||||
|
Operating Humidity |
5 -95 % Rh non- condensing |
||||
|
Cooling Method |
Natural Cooling |
||||
|
Protection |
IP/IK Code |
IP54 |
|||
|
Standby Power |
50W*N(Plug) |
||||
|
Electrical Protection |
Overcurrent, Overvoltage, Undervoltage, Ground Fault Including DC Leakage Protection, Integrated Surge Protection |
||||
·After-Sales Service: Free installation guidance and troubleshooting. Free parts provided within the warranty period.
·Customization: Design, samples, and packaging tailored to client specifications.
·Warranty: Standard 2-year warranty.
